Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > BAW62,143

BAW62,143

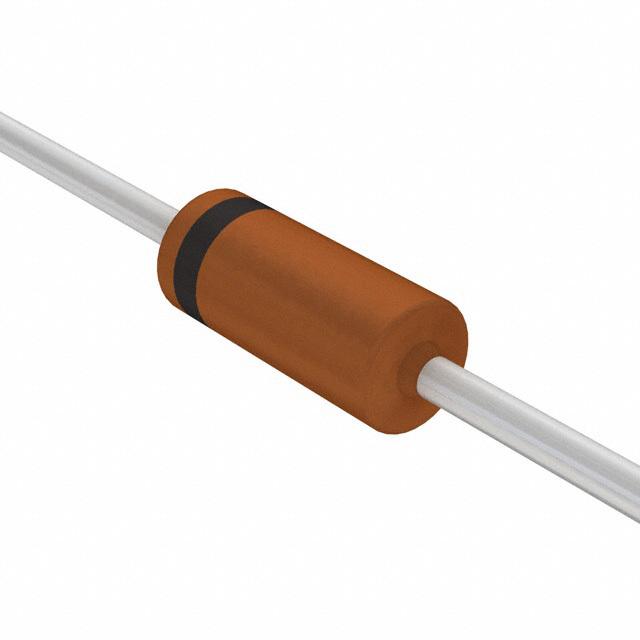

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAW62,143 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAW62,143
Manufacturer	NXP Semiconductors / Freescale
Description	DIODE GEN PURP 75V 250MA ALF2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5763 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	BAW62,143	Manufacturer	NXP Semiconductors / Freescale
Description	DIODE GEN PURP 75V 250MA ALF2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5763 pcs	Data sheet
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Voltage - DC Reverse (Vr) (Max)	75V	Supplier Device Package	ALF2
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	4ns	Packaging	Tape & Box (TB)
Package / Case	DO-204AH, DO-35, Axial	Other Names	933101220143
Operating Temperature - Junction	200°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 75V 250mA (DC) Through Hole ALF2
Current - Reverse Leakage @ Vr	5µA @ 75V	Current - Average Rectified (Io)	250mA (DC)
Capacitance @ Vr, F	2pF @ 0V, 1MHz	Base Part Number	BAW62
