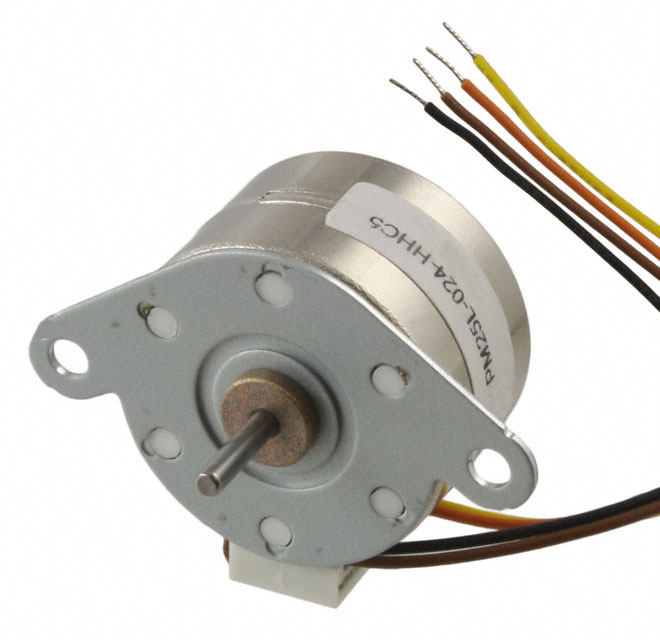

PM25L-024-HHC5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM25L-024-HHC5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM25L-024-HHC5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM25L-024-HHC5 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEPPER MOTOR PM BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $12.137 | $11.769 | $11.034 | $10.666 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.298 | $9.93 | $9.783 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM25L-024-HHC5 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3905 pcs | Data sheet | PM Motor Selection GuidePM25L-024-HHC5PM Series Drive Circuitry, Wiring |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 24VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 3.7 / 26 | Termination Style | Wire Leads |
| Steps per Revolution | 24 | Step Angle | 15° |
| Size / Dimension | Round - 0.984" Dia (25.00mm) | Series | PM |
| Rotor Inertia | - | Other Names | P14339 PM25L024HHC5 |
| Operating Temperature | - | Mounting Hole Spacing | 1.260" (32.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | 0.394" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.079" (2.00mm) |
| Detailed Description | Bipolar Stepper Motor 600mA 24VDC | Current Rating | 600mA |
| Coil Type | Bipolar | Coil Resistance | 8 Ohms |
| Approvals | - | Accuracy | - |
