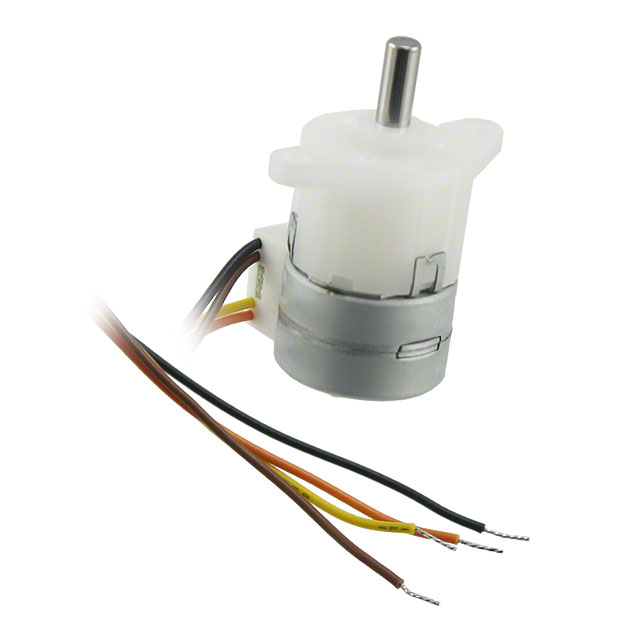

PG15S-D20-HHB9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PG15S-D20-HHB9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PG15S-D20-HHB9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PG15S-D20-HHB9 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR PM GEARED BIPOLAR 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $12.869 | $12.648 | $12.426 | $12.204 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $11.982 | $11.805 | $11.538 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PG15S-D20-HHB9 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR PM GEARED BIPOLAR 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3046 pcs | Data sheet | PG15S-D20-HHB9 SpecPG15S-D20 |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.029 lb (13.15g) |
| Voltage - Rated | 15VDC | Type | Permanent Magnet Gear Motor |
| Torque - Holding (oz-in / mNm) | 21.2 / 150 | Termination Style | Wire Leads |
| Steps per Revolution | 2048 | Step Angle | 0.176° |
| Size / Dimension | Round - 0.591" Dia (15.00mm) | Series | PG |
| Rotor Inertia | - | Other Names | P14333 PG15S-D20-HHB9B PG15S-D20-HHB9D PG15S-D20-X102 PG15S-D20-X102-ND PG15SD20HHB9 |
| Operating Temperature | - | Mounting Hole Spacing | 0.787" (20.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | 0.354" (9.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.118" (3.00mm) |
| Detailed Description | Bipolar Stepper Motor 100mA 15VDC | Current Rating | 100mA |
| Coil Type | Bipolar | Coil Resistance | 10 Ohms |
| Approvals | - | Accuracy | - |
