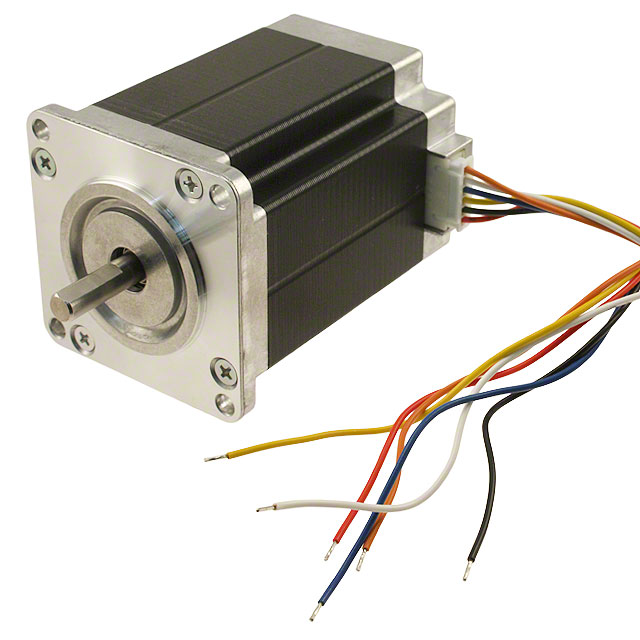

23KM-K748-99V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 23KM-K748-99V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 23KM-K748-99V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 23KM-K748-99V |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR HYBRID DUAL SHAFT 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $28.693 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 23KM-K748-99V | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR HYBRID DUAL SHAFT 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1051 pcs | Data sheet | 23KM-KHybrid Stepping Motor Standard Type |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 2.3 lbs (1kg) |
| Voltage - Rated | 24VDC | Type | Hybrid, Dual Shaft |
| Torque - Holding (oz-in / mNm) | 198.28 / 1400 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | Series | 23KM |
| Rotor Inertia | 360gcm² | Other Names | 23KMK74899V P14292 |
| Operating Temperature | -10°C ~ 50°C | NEMA Frame Size | 23 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 4 Weeks | Length - Shaft and Bearing | 0.984" (25.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.250" (6.35mm) | Detailed Description | Unipolar Stepper Motor Hybrid, Dual Shaft Frame Size 23 200 Step 2A 24VDC |
| Current Rating | 2A | Coil Type | Unipolar |
| Coil Resistance | 2.3 Ohms | Approvals | - |
| Accuracy | ±5% |
