Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > 23KM-K249BT04CA

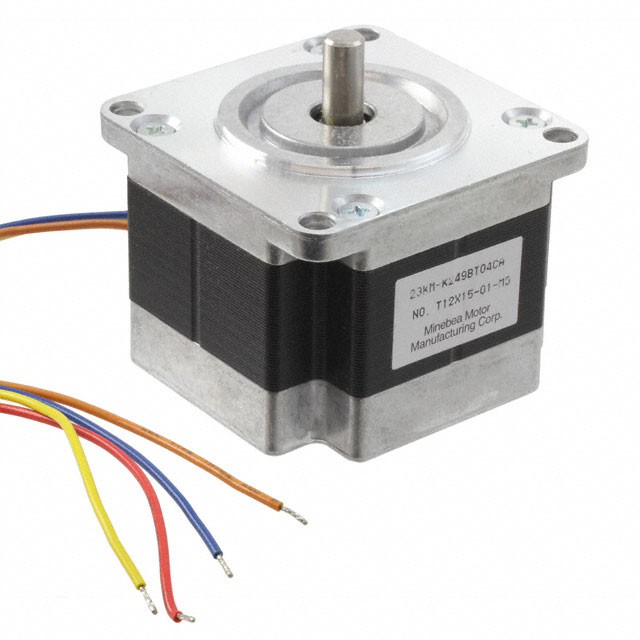

23KM-K249BT04CA

23KM-K249BT04CA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 23KM-K249BT04CA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	23KM-K249BT04CA
Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1524 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$21.052

Product parameter
Data sheet

Product parameter

Part Number	23KM-K249BT04CA	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1524 pcs	Data sheet	23KM-K Series Datasheet 23KM-K249BT04CA Hybrid Stepping Motor Standard Type
Category	Motors, Solenoids, Driver Boards/Modules	Weight	1.1 lbs (499g)
Voltage - Rated	24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	76.5 / 540	Termination Style	Wire Leads
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 2.220" x 2.220" (56.40mm x 56.40mm)	Series	23KM
Rotor Inertia	-	Other Names	23KM-K249B P16829
Operating Temperature	-	NEMA Frame Size	23
Mounting Hole Spacing	1.856" (47.14mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Length - Shaft and Bearing	0.551" (14.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Flatted Shaft
Diameter - Shaft	0.315" (8.00mm)	Detailed Description	Bipolar Stepper Motor Frame Size 23 200 Step 24VDC
Coil Type	Bipolar	Coil Resistance	2.4 Ohms
Approvals	-	Accuracy	±5%
