Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > 17PM-KA39B

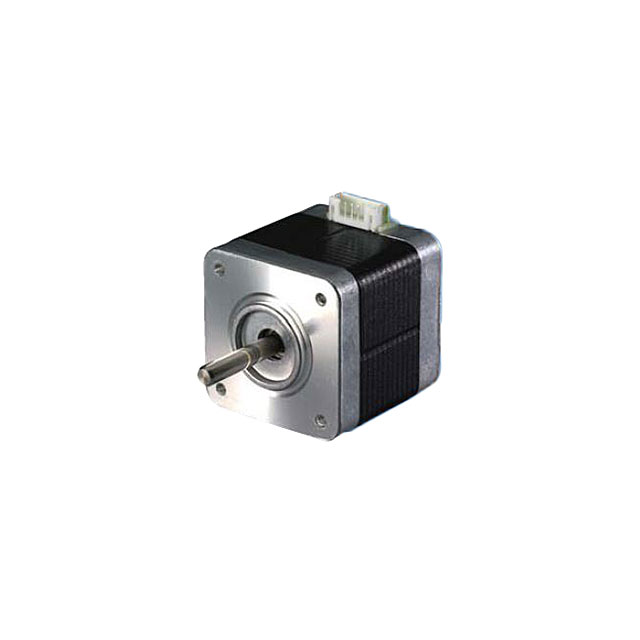

17PM-KA39B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 17PM-KA39B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	17PM-KA39B
Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1429 pcs
Reference Price (In US Dollars)	3 pcs
Reference Price (In US Dollars)	$21.91

Product parameter
Data sheet

Product parameter

Part Number	17PM-KA39B	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1429 pcs	Data sheet	PM Motor Selection Guide 17PM-K Data Sheet
Category	Motors, Solenoids, Driver Boards/Modules	Weight	1.1 lbs (499g)
Voltage - Rated	24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	86.39 / 610	Termination Style	Wire Leads with Connector
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)	Series	17PM
Rotor Inertia	120gcm²	Other Names	17PM-KA39-BPVS
Operating Temperature	-	NEMA Frame Size	17
Mounting Hole Spacing	1.220" (31.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Length - Shaft and Bearing	0.945" (24.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Round Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Bipolar Stepper Motor 200 Step 1A 24VDC
Current Rating	1A	Coil Type	Bipolar
Coil Resistance	6 Ohms	Approvals	-
Accuracy	±5%
