Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > 14PM-M047B

14PM-M047B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 14PM-M047B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	14PM-M047B
Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2899 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$13.054

Product parameter
Data sheet

Product parameter

Part Number	14PM-M047B	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2899 pcs	Data sheet	PM Motor Selection Guide 14PM-M Datasheet
Category	Motors, Solenoids, Driver Boards/Modules	Weight	0.265 lb (120.2g)
Voltage - Rated	24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	7.08 / 50	Termination Style	Connector
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.378" x 1.378" (35.00mm x 35.00mm)	Series	14PM
Rotor Inertia	8gcm²	Operating Temperature	-
NEMA Frame Size	14	Mounting Hole Spacing	1.023" (26.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	4 Weeks
Length - Shaft and Bearing	0.787" (20.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor Frame Size 14 200 Step 0.6A 24VDC	Current Rating	600mA
Coil Type	Bipolar	Coil Resistance	4.8 Ohms
Approvals	-	Accuracy	-

Related products
Related news

Related products

14PM-M444U Image

Part#:~~14PM-M444U~~
Manufacturers:~~NMB Technologies Corp.~~
Description:~~STEP MOTOR HYBRID UNIPOLAR 24V~~
In Stock:~~2358~~

~~$13.18/pcs~~RFQ

14PM-M264U Image

Part#:~~14PM-M264U~~
Manufacturers:~~NMB Technologies Corp.~~
Description:~~STEP MOTOR HYBRID UNIPOLAR 24V~~
In Stock:~~2742~~

~~$12.971/pcs~~RFQ

14PM-M247U Image

Part#:~~14PM-M247U~~
Manufacturers:~~NMB Technologies Corp.~~
Description:~~STEP MOTOR HYBRID UNIPOLAR 24V~~
In Stock:~~2647~~

~~$13.341/pcs~~RFQ

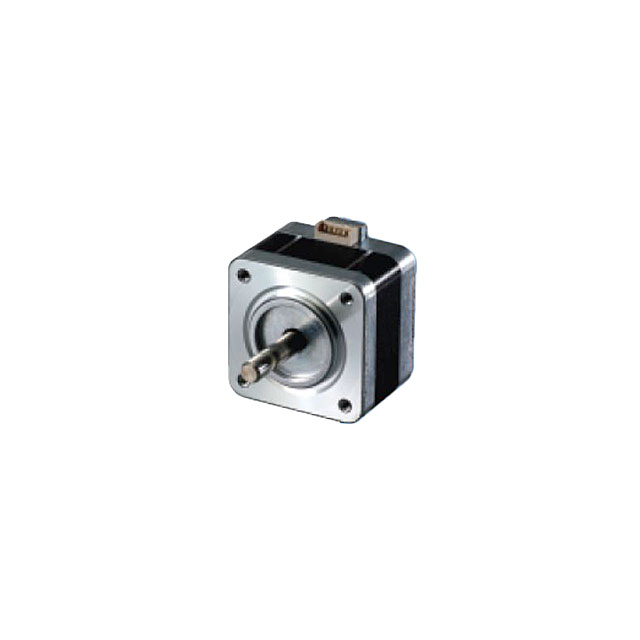

14PM-M144U Image
