Home > Products > Switches > Pushbutton Switches > YB26NKW01

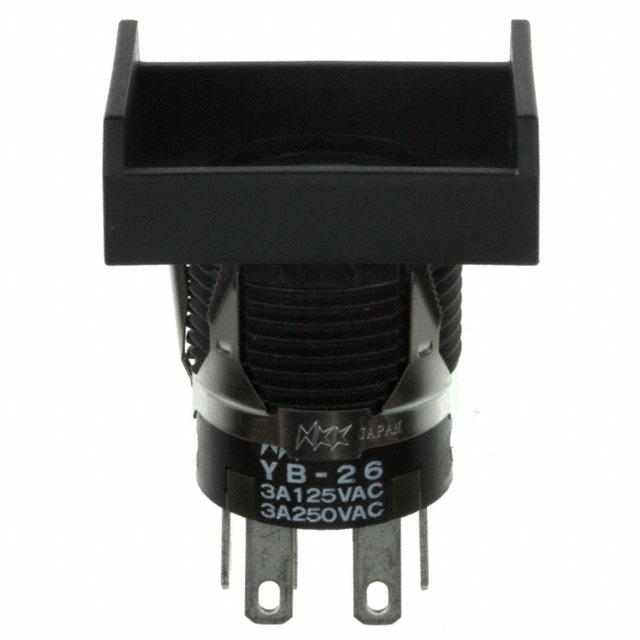

YB26NKW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YB26NKW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	YB26NKW01
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 13154 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.18	$3.867	$3.762	$3.553
	$3.449	$3.24	$3.031	$2.874

Product parameter
Data sheet

Product parameter

Part Number	YB26NKW01	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13154 pcs	Data sheet	YB Series Short Body PB
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	YB	Panel Cutout Dimensions	Circular - 16.00mm Dia
Packaging	Bulk	Other Names	YB26NKW01-RO YB26NKW01-RO-ND
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Current Rating	3A (AC/DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Plunger for Cap
