Home > Products > Switches > Pushbutton Switches > YB215CWCKW01-5C-JS

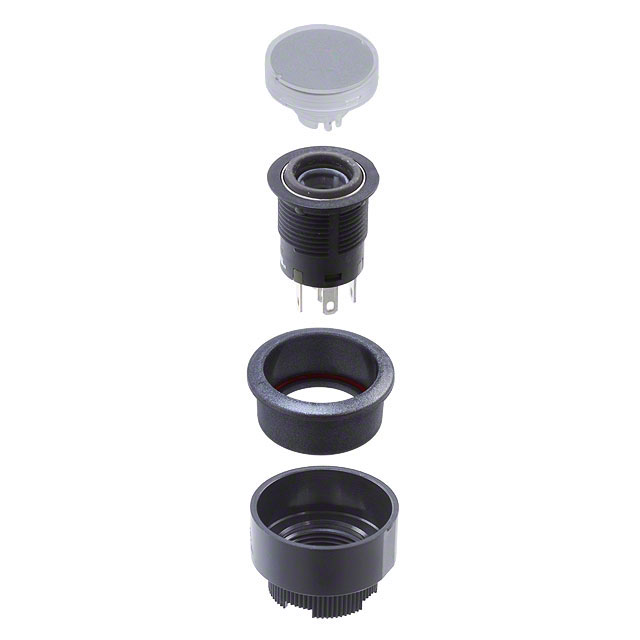

YB215CWCKW01-5C-JS

YB215CWCKW01-5C-JS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YB215CWCKW01-5C-JS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	YB215CWCKW01-5C-JS
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4057 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$8.499

Product parameter
Data sheet

Product parameter

Part Number	YB215CWCKW01-5C-JS	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4057 pcs	Data sheet	YB2 Panel Seal
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	YB2	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	360-2484
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	1.9 VDC
Illumination Type, Color	LED, Red	Features	Epoxy Sealed Terminals
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Silver
Circuit	SPDT	Actuator Type	Round, Button, Flush
