Home > Products > Switches > Pushbutton Switches > UB26RKW03N

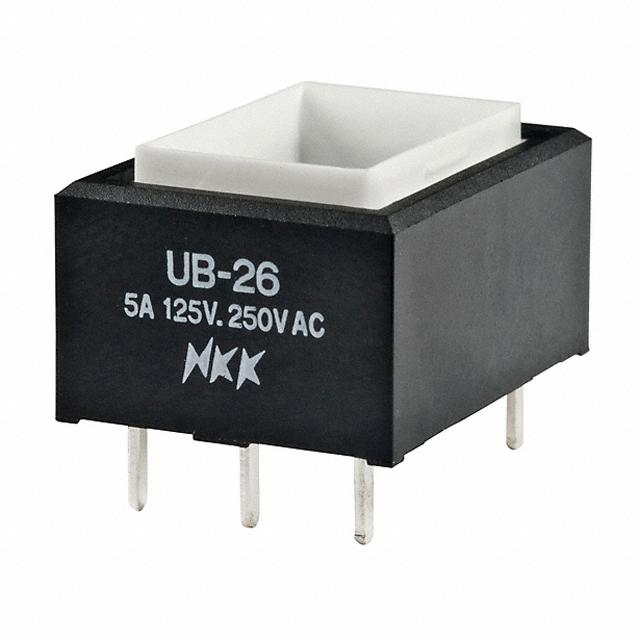

UB26RKW03N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB26RKW03N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB26RKW03N
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15537 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.867	$2.656	$2.586	$2.516
	$2.376	$2.306	$2.167	$1.957

Product parameter
Data sheet

Product parameter

Part Number	UB26RKW03N	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15537 pcs	Data sheet	UB Series Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	PC Pin	Switch Function	On-On
Series	UB	Panel Cutout Dimensions	-
Packaging	Bulk	Operating Temperature	-20°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Through Hole	Current Rating	5A (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
