Home > Products > Switches > Pushbutton Switches > UB26NKG01N

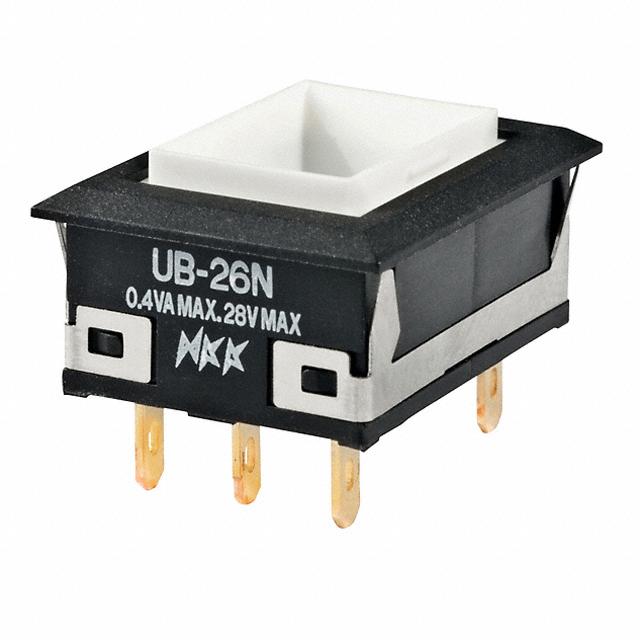

UB26NKG01N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB26NKG01N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB26NKG01N
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10038 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.722

Product parameter
Data sheet

Product parameter

Part Number	UB26NKG01N	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10038 pcs	Data sheet	UB Series Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-On
Series	UB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Operating Temperature	-20°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	200,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Plunger for Cap
