Home > Products > Switches > Pushbutton Switches > UB25KKG016B

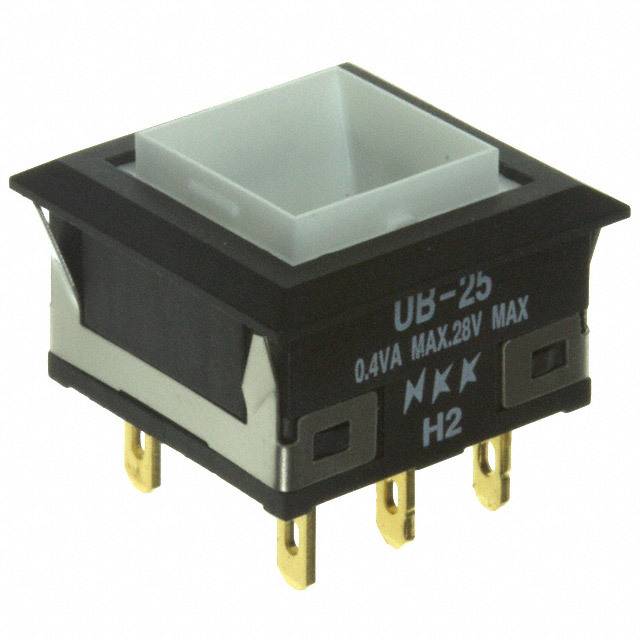

UB25KKG016B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB25KKG016B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB25KKG016B
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5806 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$7.397	$7.296	$7.193	$6.679
	$6.577	$5.857	$5.652

Product parameter
Data sheet

Product parameter

Part Number	UB25KKG016B	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5806 pcs	Data sheet	UB2 Low Profile Pushbutton UB Series
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	Square - 16.20mm²
Packaging	Bulk	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.9 VDC	Illumination Type, Color	LED, White
Features	Epoxy Sealed Terminals	Electrical Life	200,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
