Home > Products > Switches > Pushbutton Switches > UB226SKG036CF-4J01

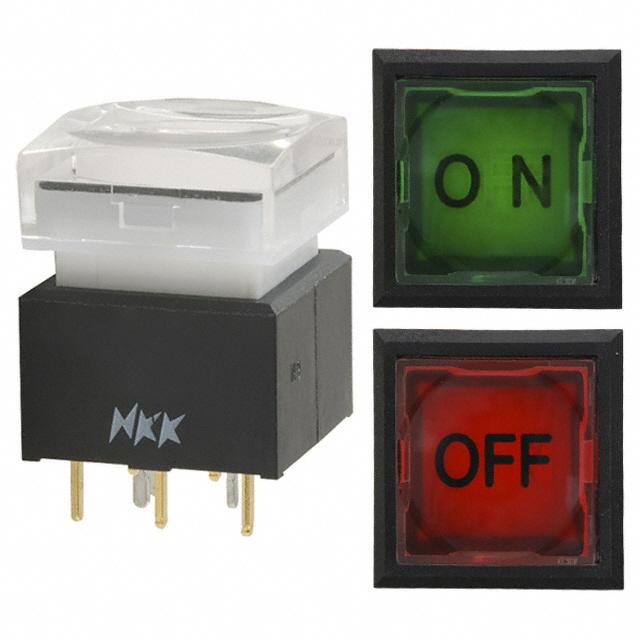

UB226SKG036CF-4J01

UB226SKG036CF-4J01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB226SKG036CF-4J01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB226SKG036CF-4J01
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4333 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	UB226SKG036CF-4J01	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4333 pcs	Data sheet	UB2 Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	PC Pin	Switch Function	On-On
Series	UB2	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-2225
Operating Temperature	-25°C ~ 50°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1, 3.5 VDC	Illumination Type, Color	LED, Red/Green
Features	ON/OFF Symbol	Electrical Life	200,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Clear	Circuit	DPDT
Actuator Type	Square, Button, Alternating Legend
