Home > Products > Switches > Pushbutton Switches > UB15RKW03N

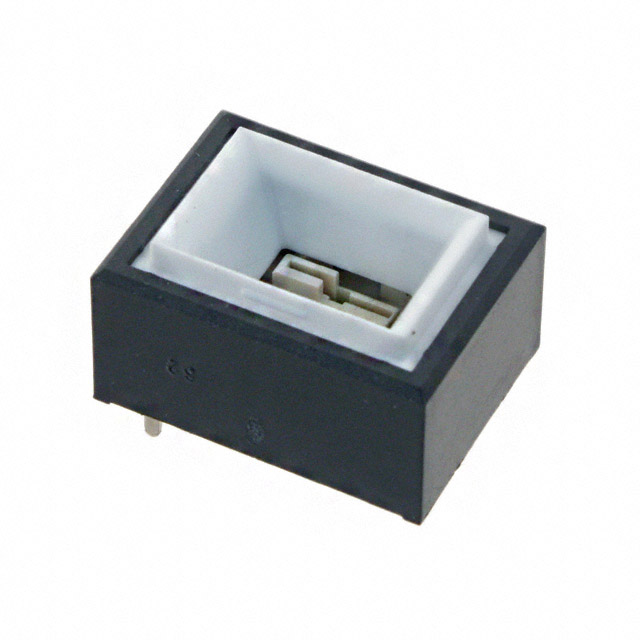

UB15RKW03N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB15RKW03N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB15RKW03N
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 28483 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.998	$1.903	$1.807	$1.76
	$1.712	$1.617	$1.522	$1.379

Product parameter
Data sheet

Product parameter

Part Number	UB15RKW03N	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28483 pcs	Data sheet	UB Series Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	-
Packaging	Bulk	Operating Temperature	-20°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Through Hole	Current Rating	5A (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
