Home > Products > Switches > Pushbutton Switches > UB15NKW015F-FF

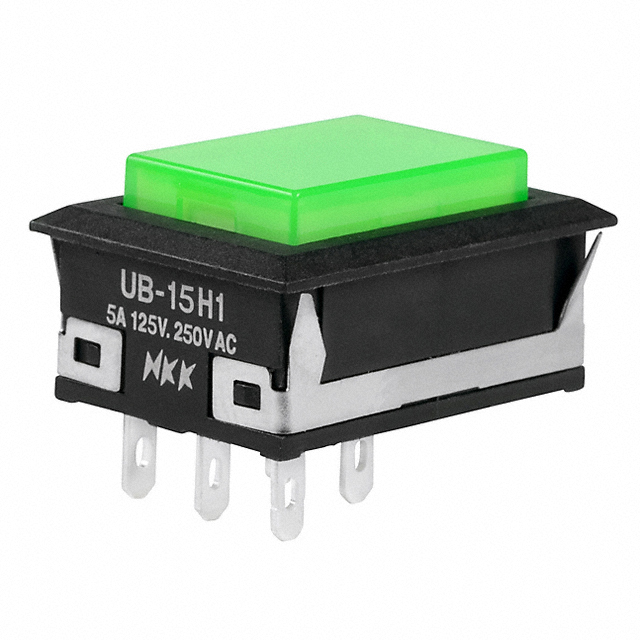

UB15NKW015F-FF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB15NKW015F-FF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB15NKW015F-FF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14522 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.475	$3.222	$3.137	$3.052
	$2.882	$2.798	$2.628	$2.374

Product parameter
Data sheet

Product parameter

Part Number	UB15NKW015F-FF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14522 pcs	Data sheet	UB Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Other Names	360-3469 UB15NKW015F-FF-ND UB15NKW015FFF
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	5A (AC/DC)	Color - Actuator/Cap	Green
Circuit	SPDT	Actuator Type	Rectangular, Button
