TS3N

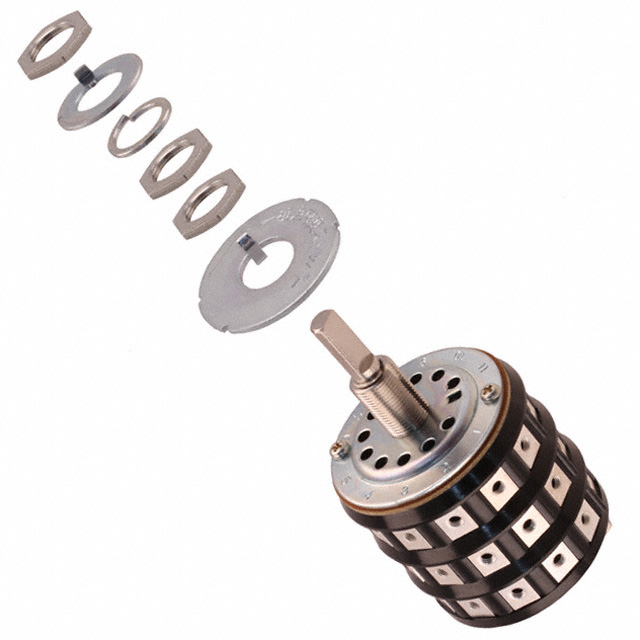

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS3N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS3N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS3N |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROTARY 2-11POS 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $18.742 | $17.939 | $17.671 | $17.136 | $15.262 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TS3N | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY 2-11POS 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2019 pcs | Data sheet | HS, TS, PS Series |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Screw Terminal | Series | TS |
| Panel Cutout Dimensions | Circular - 10.30mm Dia | Other Names | 360-2358 TS3N-RO TS3N-RO-ND |
| Operating Force | 35gfm | Number of Positions | 2 ~ 11 |
| Number of Poles per Deck | 1 | Number of Decks | 3 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Adjustable | Features | - |
| Detailed Description | Rotary Switch 2 ~ 11 Position SP11T 6A (AC) 125VAC Panel Mount | Depth Behind Panel | 46.00mm |
| Current Rating | 6A (AC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Phosphor Bronze | Contact Finish | - |
| Circuit per Deck | SP11T | Angle of Throw | 30° |
| Actuator Type | Flatted (6mm Dia) | Actuator Length | 15.60mm |
