Home > Products > Switches > Slide Switches > SS22SDP2LE

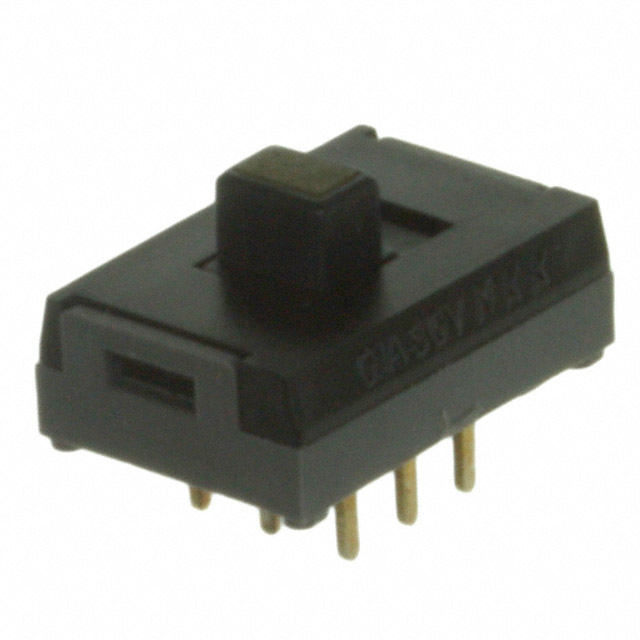

SS22SDP2LE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS22SDP2LE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SS22SDP2LE
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 100MA 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22299 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.386	$2.358	$2.329	$2.131
	$2.045	$1.932	$1.704	$1.534

Product parameter
Data sheet

Product parameter

Part Number	SS22SDP2LE	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 100MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22299 pcs	Data sheet	SS Series Illuminated Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	PC Pin	Switch Travel	2.00mm
Switch Function	On-On	Series	SS
Packaging	Tray	Operating Temperature	-15°C ~ 60°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	100mA (DC)
Contact Timing	Shorting (MBB)	Contact Material	Phosphor Bronze
Contact Finish	Silver	Circuit	DPDT
Actuator Type	Illuminated	Actuator Material	Polyacetal
Actuator Length	2.50mm
