Home > Products > Switches > Slide Switches > SS12SDH2LE

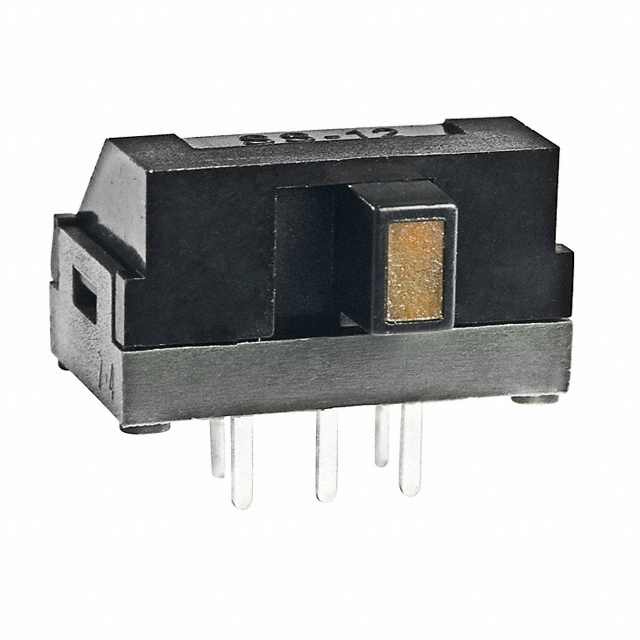

SS12SDH2LE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS12SDH2LE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SS12SDH2LE
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 100MA 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27346 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.221	$2.194	$2.167	$1.982
	$1.903	$1.797	$1.586	$1.427

Product parameter
Data sheet

Product parameter

Part Number	SS12SDH2LE	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 100MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27346 pcs	Data sheet	SS Series Illuminated Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	PC Pin	Switch Travel	2.00mm
Switch Function	On-On	Series	SS
Packaging	Tray	Operating Temperature	-15°C ~ 60°C
Operating Force	-	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole, Right Angle	Current Rating	100mA (DC)
Contact Timing	Shorting (MBB)	Contact Material	Phosphor Bronze
Contact Finish	Silver	Circuit	SPDT
Actuator Type	Illuminated	Actuator Material	Polyacetal
Actuator Length	2.50mm
