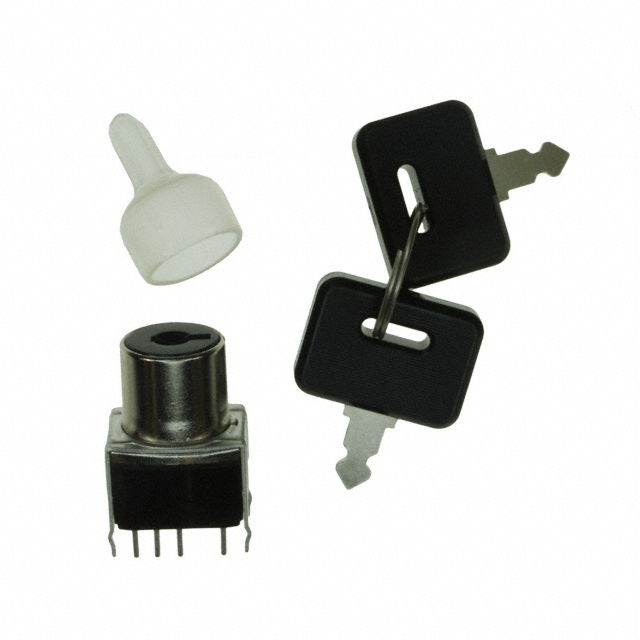

SK24DG13
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SK24DG13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SK24DG13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SK24DG13 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH KEYLK 3POS DP3T 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.101 | $4.961 | $4.819 | $4.678 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.111 | $3.898 | $3.827 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SK24DG13 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLK 3POS DP3T 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9882 pcs | Data sheet | SK Series Process Sealed Keylocks |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | PC Pin |
| Switch Function | On-On-On | Series | SK |
| Panel Cutout Dimensions | - | Other Names | 360-1476 360-1476-ND SK24DG13-RO SK24DG13-RO-ND |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Key Removable Positions | All |
| Features | Process Sealed | Electrical Life | 10,000 Cycles |
| Detailed Description | Keylock Switch 3 Position DP3T 0.4VA (AC/DC) 28VAC 28VDC Through Hole | Depth Behind Flange | - |
| Current Rating | 0.4VA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | DP3T | Angle of Throw | 45° |
| Actuator Type | Flat Key |
