SK14DGMG01

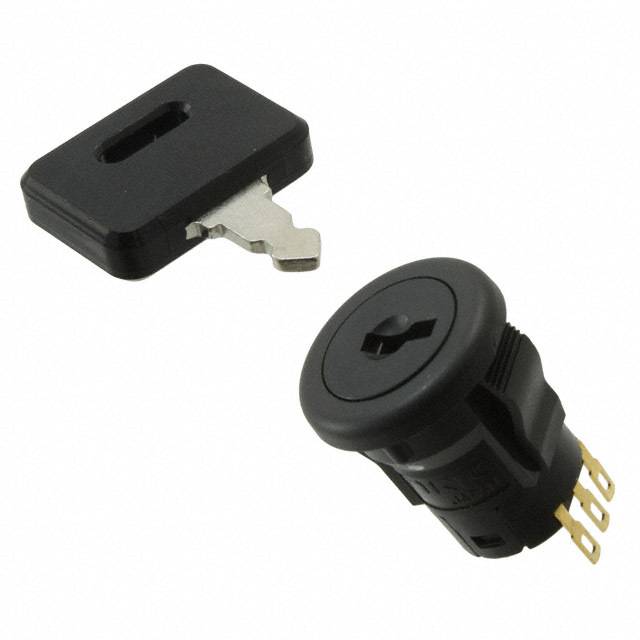

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SK14DGMG01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SK14DGMG01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SK14DGMG01 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH KEYLOCK SP3T 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.307 | $4.092 | $3.876 | $3.769 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.446 | $3.123 | $3.015 | $2.907 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SK14DGMG01 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLOCK SP3T 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12024 pcs | Data sheet | SK Series |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | Solder Lug |
| Switch Function | On-On-On | Series | SK |
| Panel Cutout Dimensions | Circular - 14.50mm Dia | Other Names | 360-2669 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Panel Mount, Snap-In | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Key Removable Positions | All |
| Features | Antistatic | Electrical Life | 10,000 Cycles |
| Detailed Description | Keylock Switch 3 Position SP3T 0.4VA (AC/DC) 28VAC 28VDC Panel Mount, Snap-In | Depth Behind Flange | 22.70mm |
| Current Rating | 0.4VA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | SP3T | Angle of Throw | 45° |
| Actuator Type | Flat Key |
