SK13EDW01-005

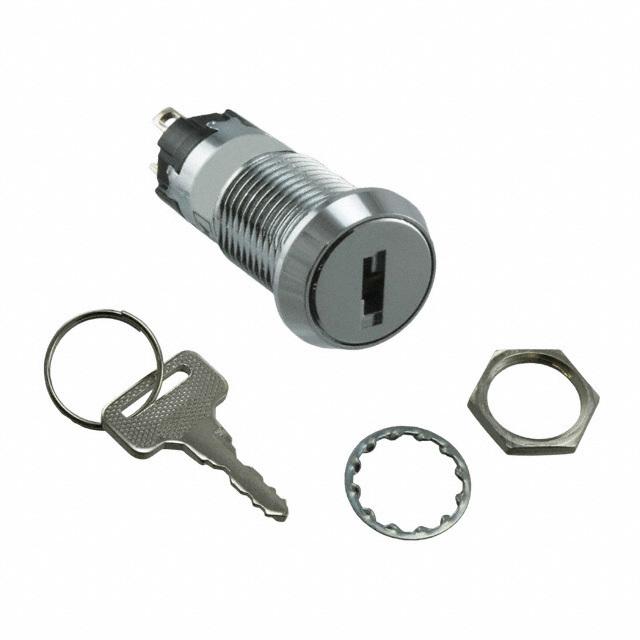

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SK13EDW01-005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SK13EDW01-005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SK13EDW01-005 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH KEYLOCK 3POS SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.392 | $8.159 | $7.926 | $7.693 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.76 | $6.41 | $6.294 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SK13EDW01-005 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLOCK 3POS SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6287 pcs | Data sheet | SK Series |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off-On |
| Series | SK | Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Other Names | 360-2507 | Operating Temperature | -25°C ~ 70°C |
| Number of Positions | 3 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 30,000 Cycles |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Key Removable Positions | 2 only | Features | Epoxy Sealed Terminals |
| Electrical Life | 10,000 Cycles | Detailed Description | Keylock Switch 3 Position SPDT 3A (AC) 125VAC Panel Mount |
| Depth Behind Flange | 29.20mm | Current Rating | 3A (AC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver (Ag) |
| Contact Finish | - | Circuit | SPDT |
| Angle of Throw | 45° | Actuator Type | Flat Key |
