Home > Products > Switches > Keylock Switches > SK12AG13

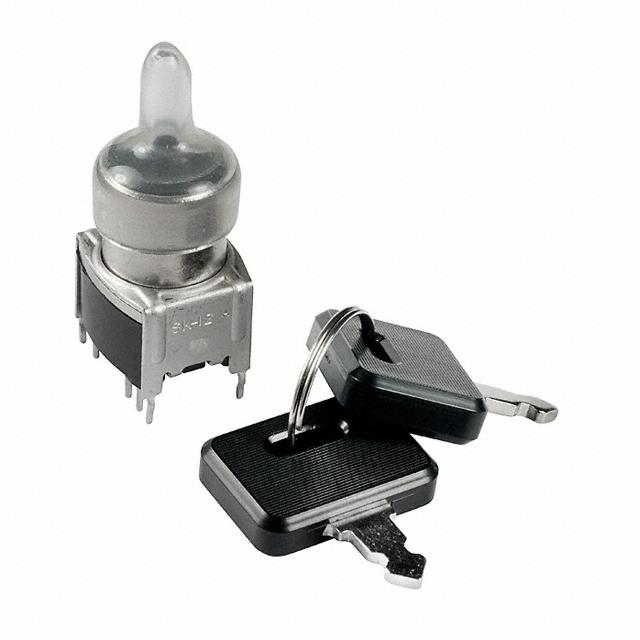

SK12AG13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SK12AG13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SK12AG13
Manufacturer	NKK Switches
Description	SWITCH KEYLK 2POS SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11547 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.855	$4.612	$4.369	$4.248
	$3.884	$3.52	$3.398	$3.277

Product parameter
Data sheet

Product parameter

Part Number	SK12AG13	Manufacturer	NKK Switches
Description	SWITCH KEYLK 2POS SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11547 pcs	Data sheet	SK Series Process Sealed Keylocks
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	SK
Panel Cutout Dimensions	-	Other Names	360-1470 360-1470-ND 360-2918 SK12AG13-ND SK12AG13-RO SK12AG13-RO-ND
Operating Temperature	-25°C ~ 70°C	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Key Removable Positions	All
Features	Process Sealed	Electrical Life	10,000 Cycles
Detailed Description	Keylock Switch 2 Position SPDT 0.4VA (AC/DC) 28VAC 28VDC Through Hole	Depth Behind Flange	-
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPDT	Angle of Throw	90°
Actuator Type	Flat Key
