Home > Products > Switches > Pushbutton Switches > SCB15P15B-1A

SCB15P15B-1A

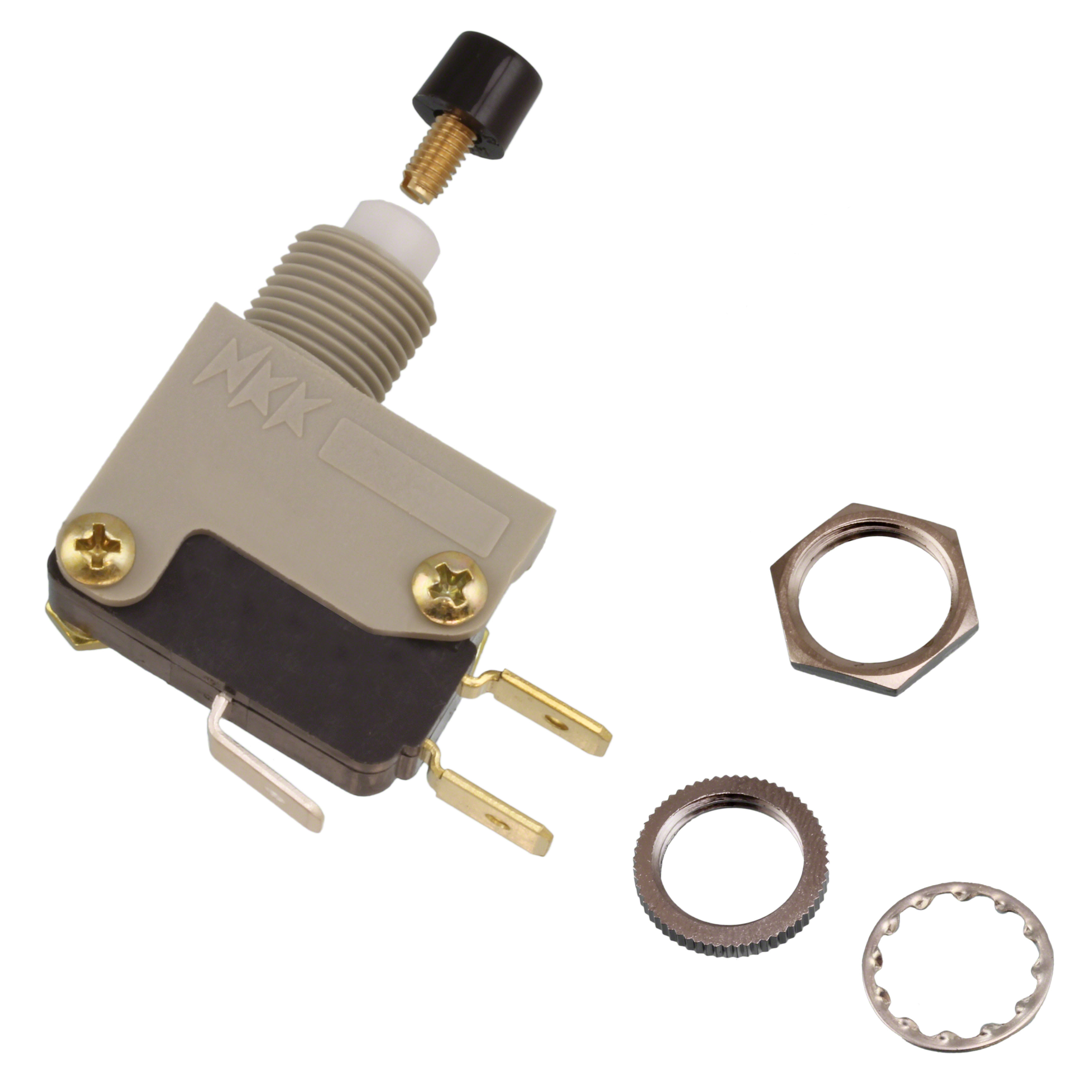

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCB15P15B-1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SCB15P15B-1A
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 11270 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.044

Product parameter
Data sheet

Product parameter

Part Number	SCB15P15B-1A	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11270 pcs	Data sheet	SCB Series Snap Switch
Category	Switches	Voltage Rating - AC	125V
Type	Standard	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom	Series	SCB
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	360-3367 SCB15P15B-1A-ND	Operating Temperature	-40°C ~ 85°C
Mounting Type	Panel Mount, Rear	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Rear
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Round, Button
