Home > Products > Switches > Pushbutton Switches > SB25

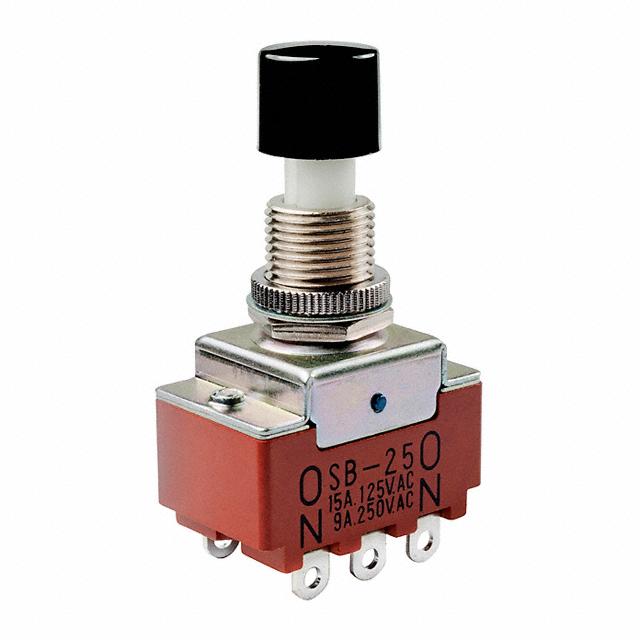

SB25

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SB25 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SB25
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 18267 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.156	$2.925	$2.848	$2.771
	$2.617	$2.54	$2.386	$2.155

Product parameter
Data sheet

Product parameter

Part Number	SB25	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18267 pcs	Data sheet	SB Series Low/Med Capacity Datasheet
Category	Switches	Voltage Rating - AC	125V
Type	Standard	Termination Style	Solder Lug
Switch Function	On-On	Series	SB
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	SB25-RO SB25-RO-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount, Rear	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Rear	Current Rating	15A (AC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Round, Button
