Home > Products > Switches > Toggle Switches > S832/U

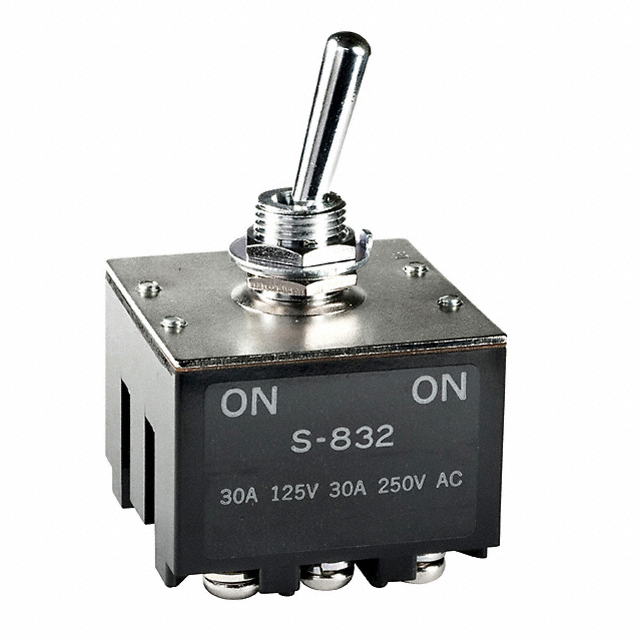

S832/U

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S832/U with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S832/U
Manufacturer	NKK Switches
Description	SWITCH TOGGLE 3PDT 30A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3504 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$12.997	$12.233	$11.468
	$10.704	$10.321	$9.939

Product parameter
Data sheet

Product parameter

Part Number	S832/U	Manufacturer	NKK Switches
Description	SWITCH TOGGLE 3PDT 30A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3504 pcs	Data sheet	S Series Toggle High Cap Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-On	Series	S
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	S832U	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch 3PDT Panel Mount	Current Rating	30A (AC/DC)
Circuit	3PDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	22.00mm
