Home > Products > Switches > Toggle Switches > S5AW

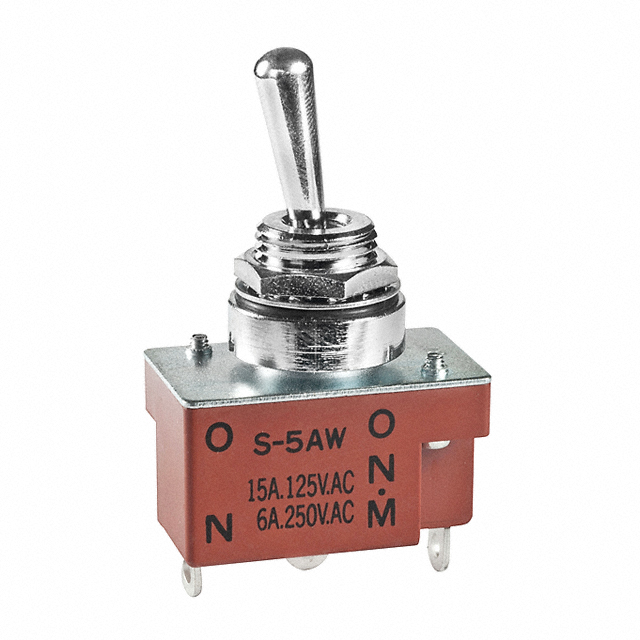

S5AW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S5AW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S5AW
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10952 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.286

Product parameter
Data sheet

Product parameter

Part Number	S5AW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10952 pcs	Data sheet	S Medium Capacity Standard Size Toggles
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	S
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	360-1740 360-1740-ND 360-1926 S5AW-RO	Operating Temperature	-30°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	15A (AC), 20A (DC)
Circuit	SPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
