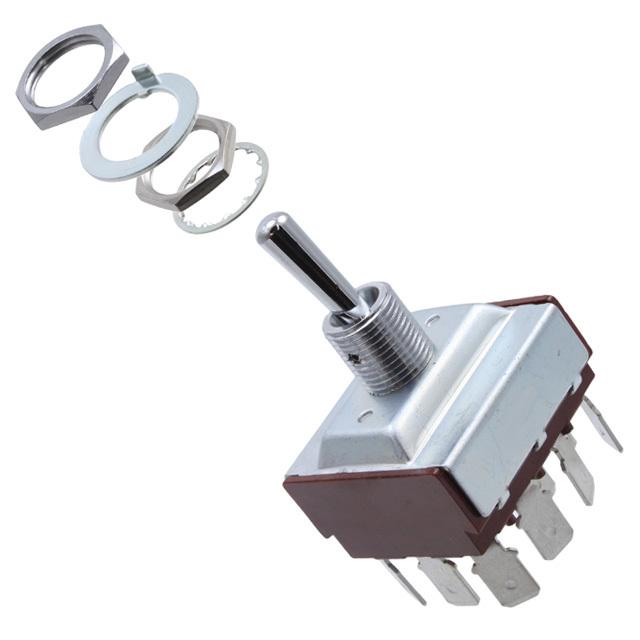

S42F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S42F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S42F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S42F |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE 4PDT 25A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.724 | $4.468 | $4.34 | $4.213 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.085 | $3.957 | $3.319 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | S42F | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE 4PDT 25A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9212 pcs | Data sheet | S Series Med/High Cap Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Switch Function | On-On | Series | S |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Other Names | 360-1216 360-1216-ND 360-2094 S42F-RO |
Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Electrical Life | 25,000 Cycles |
| Detailed Description | Toggle Switch 4PDT Panel Mount | Current Rating | 25A (AC), 20A (DC) |
| Circuit | 4PDT | Bushing Thread | M12 x 1 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 17.50mm |
