Home > Products > Switches > Toggle Switches > S423

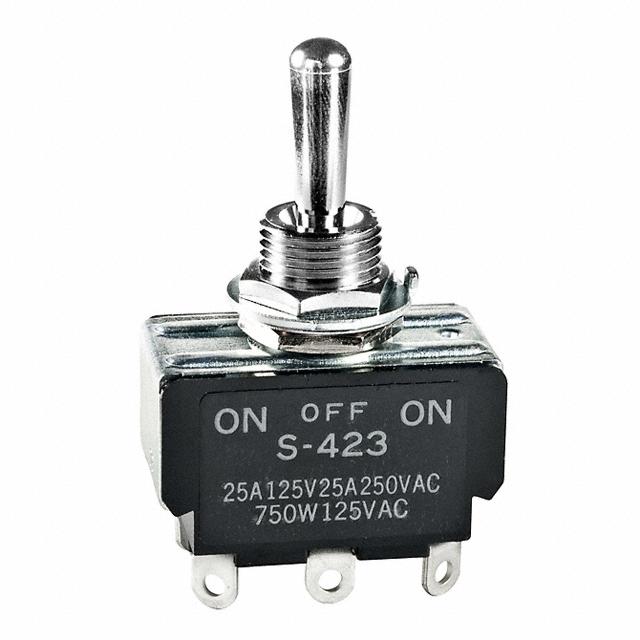

S423

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S423 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S423
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 25A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12205 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.066	$3.96	$3.853	$3.639
	$3.532	$3.425	$2.89	$2.783

Product parameter
Data sheet

Product parameter

Part Number	S423	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12205 pcs	Data sheet	S Series Med/High Cap Toggle Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	S400	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	S423-RO S423-RO-ND
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	15,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	25A (AC)	Circuit	DPDT
Bushing Thread	M12 x 1	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	17.50mm
