Home > Products > Switches > Toggle Switches > S338R

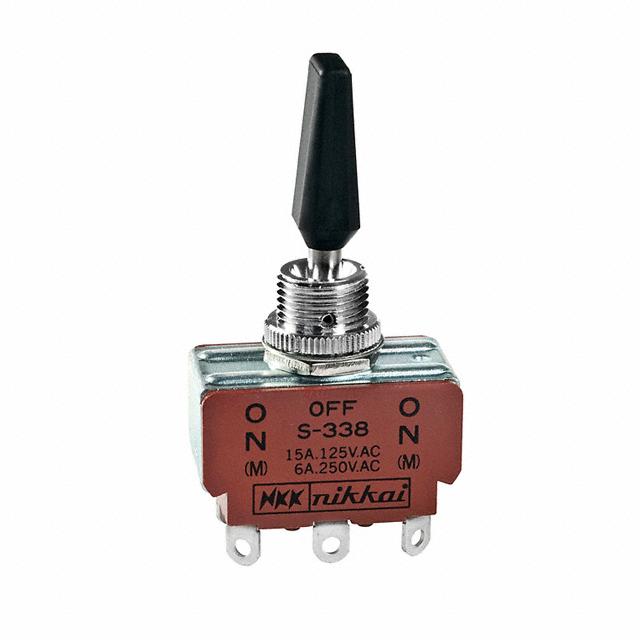

S338R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S338R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S338R
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 12305 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.184	$4.074	$3.964	$3.744
	$3.634	$3.524	$2.973	$2.863

Product parameter
Data sheet

Product parameter

Part Number	S338R	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12305 pcs	Data sheet	S Series Med/High Cap Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	Mom-Off-Mom	Series	S300R
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	360-3004 Q2627687 S338R-ND S338R-RO S338R-RO-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Black Actuator	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	15A (AC), 20A (DC)
Circuit	DPDT	Bushing Thread	M12 x 1
Actuator Type	Flatted	Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Length	27.00mm
