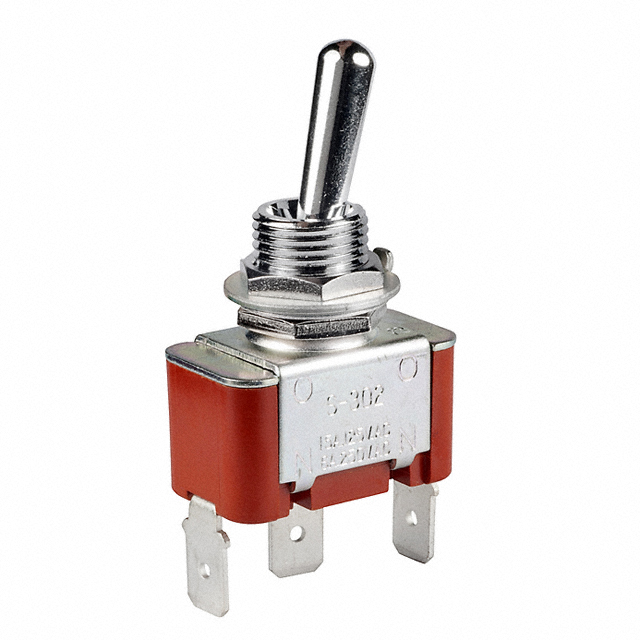

S302F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S302F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S302F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S302F |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE SPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.154 | $2.046 | $1.992 | $1.938 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.885 | $1.777 | $1.508 | $1.427 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | S302F | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24356 pcs | Data sheet | S Series Med/High Cap Toggle Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Switch Function | On-On | Series | S300 |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Operating Temperature | -10°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 25,000 Cycles | Detailed Description | Toggle Switch SPDT Panel Mount |
| Current Rating | 15A (AC), 20A (DC) | Circuit | SPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 17.50mm |
