Home > Products > Switches > Toggle Switches > S29AWF

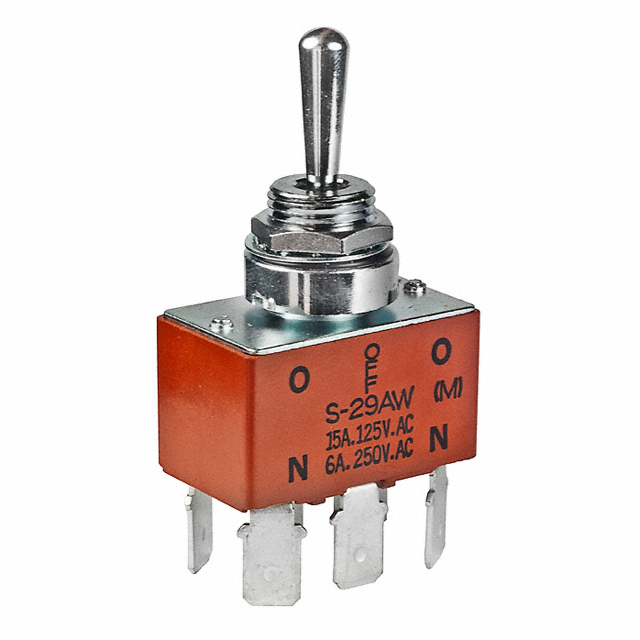

S29AWF

S29AWF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S29AWF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S29AWF
Manufacturer NKK Switches
Description SWITCH TOGGLE DPDT 15A 125V
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 9341 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$4.893$4.628$4.496$4.364
100 pcs250 pcs500 pcs
$4.232$4.099$3.438

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$4.893

Product parameter

Part Number S29AWF Manufacturer NKK Switches
Description SWITCH TOGGLE DPDT 15A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 9341 pcs Data sheet S Medium Capacity Standard Size Toggles
Category Switches Voltage Rating - DC 30V
Voltage Rating - AC 125V Termination Style Quick Connect - 0.250" (6.3mm)
Switch Function On-Off-Mom Series S
Panel Cutout Dimensions Circular - 12.50mm Dia Packaging Bulk
Other Names 360-2896
S29AWF-ND
S29AWF-RO
S29AWF-RO-ND		 Operating Temperature -30°C ~ 70°C
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 5 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection IP67 - Dust Tight, Waterproof Illumination Voltage (Nominal) -
Illumination Type, Color - Illumination Non-Illuminated
Features - Electrical Life 25,000 Cycles
Detailed Description Toggle Switch DPDT Panel Mount Current Rating 15A (AC), 20A (DC)
Circuit DPDT Bushing Thread M12 x 1
Actuator Type Standard Round Actuator Material Brass, Chrome Plated
Actuator Length 17.50mm
