Home > Products > Switches > Rocker Switches > P2022YP

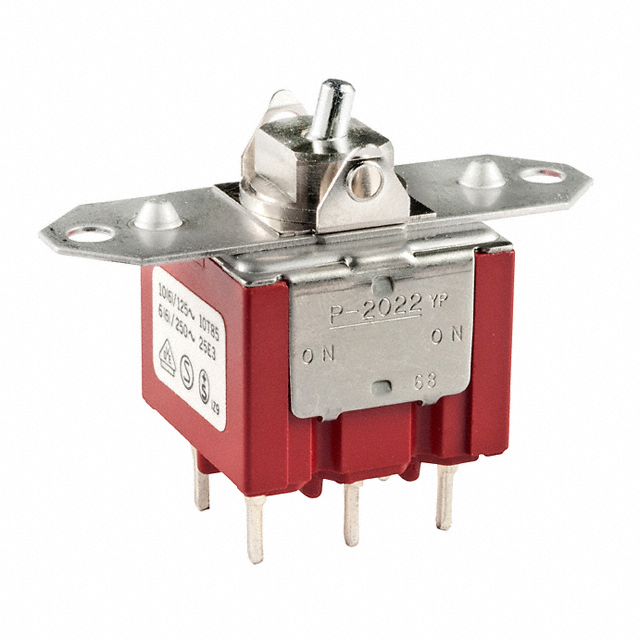

P2022YP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P2022YP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P2022YP
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11554 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.817	$4.336	$4.215	$4.095
	$3.974	$3.854	$3.372	$3.191

Product parameter
Data sheet

Product parameter

Part Number	P2022YP	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11554 pcs	Data sheet	P Series Rockers/Paddles Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-On
Series	P	Panel Cutout Dimensions	Rectangular - 28.50mm x 16.00mm
Packaging	Bulk	Operating Temperature	-10°C ~ 85°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPDT 10A (AC) 125V Panel Mount, Flange	Current Rating	10A (AC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Actuator Arm, Cap Required	Actuator Marking	Varies by Cap
