Home > Products > Switches > Toggle Switches > P2022E

P2022E

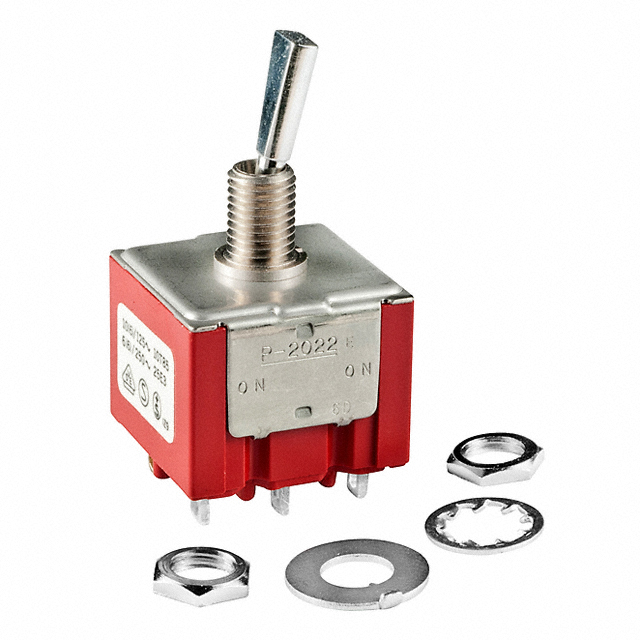

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P2022E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P2022E
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14391 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.01	$3.903	$3.797	$3.586
	$3.481	$3.376	$2.848	$2.743

Product parameter
Data sheet

Product parameter

Part Number	P2022E	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14391 pcs	Data sheet	P Series Toggle Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	P	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Other Names	P2022E-RO P2022E-RO-ND
Operating Temperature	-10°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	10A (AC)	Circuit	DPDT
Bushing Thread	M6 x 0.75	Actuator Type	Flatted
Actuator Material	Brass, Chrome Plated	Actuator Length	11.40mm
