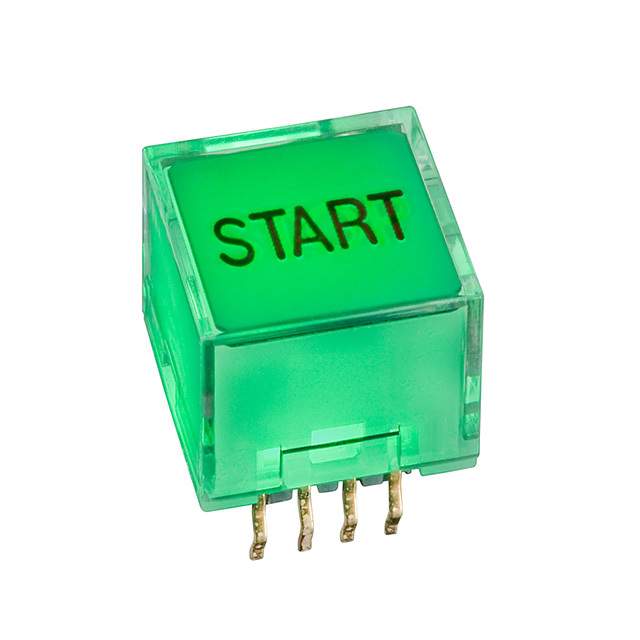

NP0115AG03LCF-JCF13
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NP0115AG03LCF-JCF13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NP0115AG03LCF-JCF13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NP0115AG03LCF-JCF13 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPST-NO 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.306 | $9.172 | $9.039 | $8.375 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.242 | $7.311 | $7.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NP0115AG03LCF-JCF13 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSH SPST-NO 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5561 pcs | Data sheet | NP01 Series DatasheetNP01 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Type | Standard, Illuminated |
| Termination Style | PC Pin | Switch Function | Off-Mom |
| Series | NP01 | Panel Cutout Dimensions | - |
| Packaging | Bulk | Other Names | 360-3544 NP0115AG03LCF-JCF13-ND |
| Operating Temperature | -25°C ~ 50°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 500,000 Cycles |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.0, 3.5 VDC |
| Illumination Type, Color | LED, Red/Green | Features | START/STOP Symbol |
| Electrical Life | 500,000 Cycles | Detailed Description | Pushbutton Switch SPST-NO Standard, Illuminated Through Hole |
| Current Rating | 0.4VA (AC/DC) | Color - Actuator/Cap | Green, Red |
| Circuit | SPST-NO | Actuator Type | Square, Button, Alternating Legend |
