Home > Products > Switches > Pushbutton Switches > MB2181SD3G01-CF

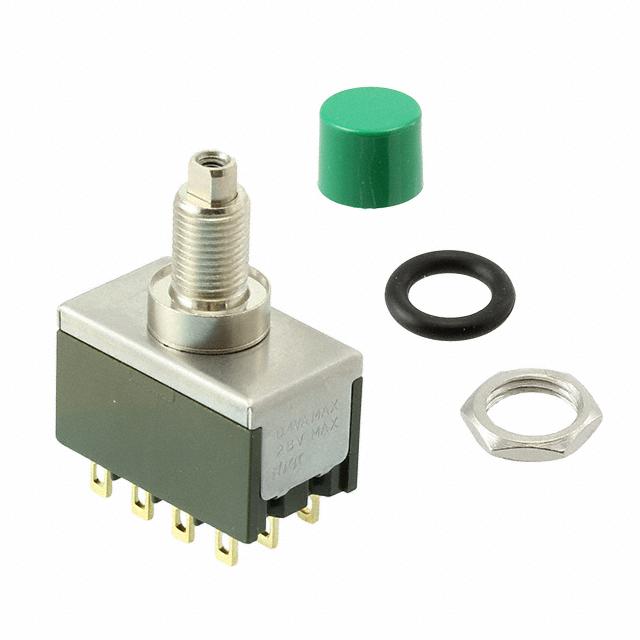

MB2181SD3G01-CF

MB2181SD3G01-CF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2181SD3G01-CF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2181SD3G01-CF
Manufacturer	NKK Switches
Description	SWITCH PUSH 4PDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 9061 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.88	$4.622	$4.558	$4.237
	$4.173	$3.723	$3.595	$3.467

Product parameter
Data sheet

Product parameter

Part Number	MB2181SD3G01-CF	Manufacturer	NKK Switches
Description	SWITCH PUSH 4PDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9061 pcs	Data sheet	MB2000 Series Bushing Mount Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	MB2000	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	360-3330 MB2181SD3G01-CF-ND MB2181SD3G01-CF-RO MB2181SD3G01-CF-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch 4PDT Standard Panel Mount, Rear
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Green
Circuit	4PDT	Actuator Type	Round, Button
