Home > Products > Switches > Pushbutton Switches > MB2085SB1W01-EC

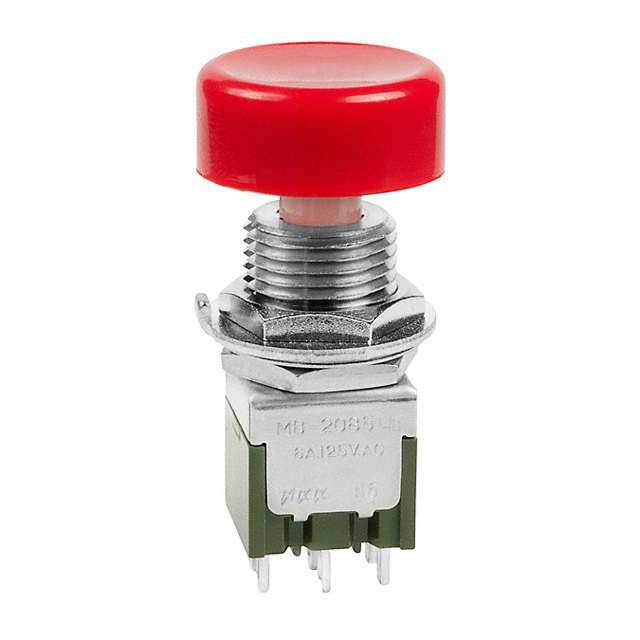

MB2085SB1W01-EC

MB2085SB1W01-EC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2085SB1W01-EC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2085SB1W01-EC
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10404 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.726

Product parameter
Data sheet

Product parameter

Part Number	MB2085SB1W01-EC	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10404 pcs	Data sheet	MB2000 Series Large Bushing Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-On
Series	MB2000	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	MB2085SB1W01-EC-RO MB2085SB1W01-EC-RO-ND MB2085SB1W01EC
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Rear
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	Red
Circuit	DPDT	Actuator Type	Round, Button
