Home > Products > Switches > Pushbutton Switches > MB2065SB1W03-DC

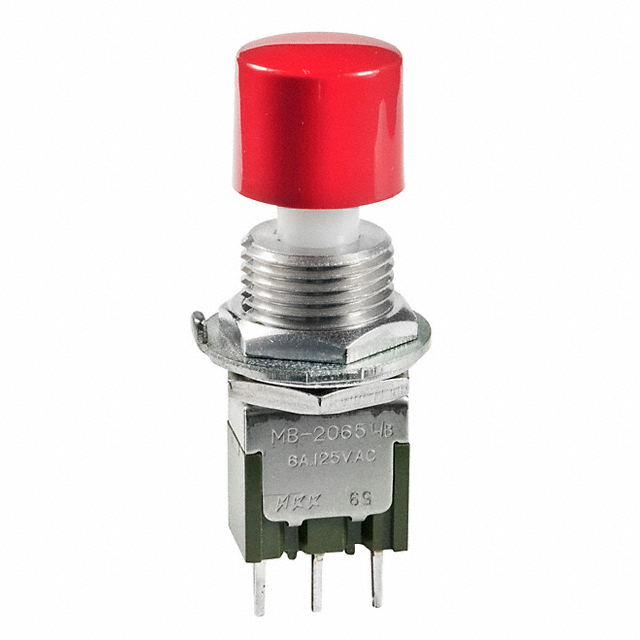

MB2065SB1W03-DC

MB2065SB1W03-DC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2065SB1W03-DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2065SB1W03-DC
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 19942 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.765	$2.564	$2.497	$2.429
	$2.294	$2.227	$2.092	$1.889

Product parameter
Data sheet

Product parameter

Part Number	MB2065SB1W03-DC	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19942 pcs	Data sheet	MB2000 Series Large Bushing Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	PC Pin	Switch Function	On-On
Series	MB2000	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	360-2878 MB2065SB1W03-DC-ND MB2065SB1W03-DC-RO MB2065SB1W03-DC-RO-ND MB2065SB1W03DC
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Rear
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	Red
Circuit	SPDT	Actuator Type	Round, Button
