Home > Products > Switches > Pushbutton Switches > MB2061LS1W01

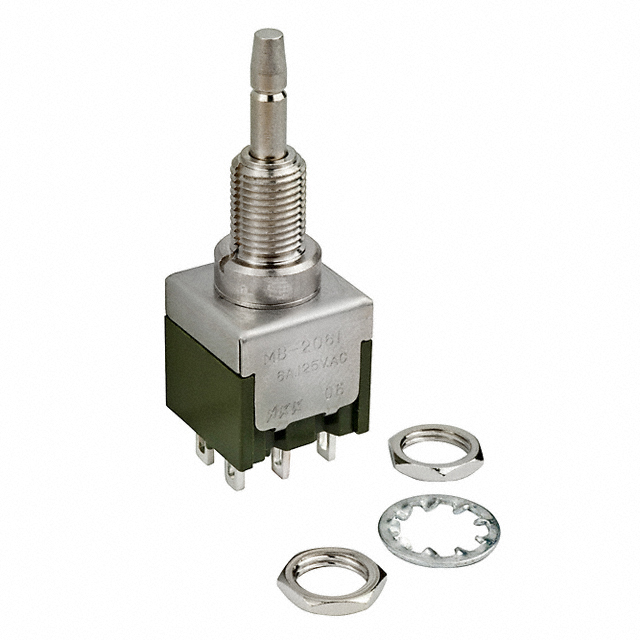

MB2061LS1W01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2061LS1W01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2061LS1W01
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12876 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.475

Product parameter
Data sheet

Product parameter

Part Number	MB2061LS1W01	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12876 pcs	Data sheet	MB2000 Series Bushing Mount Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	MB2000	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	MB2061LS1W01-RO MB2061LS1W01-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Rear
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Plunger for Cap
