Home > Products > Switches > Pushbutton Switches > MB2011SD3W03

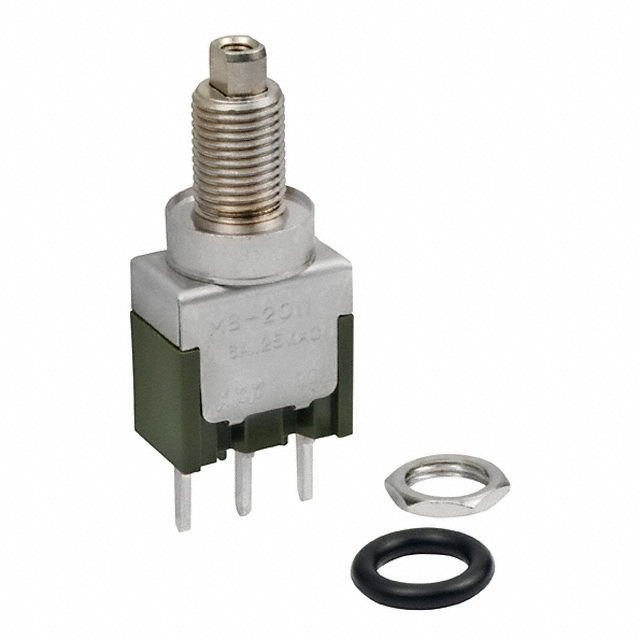

MB2011SD3W03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2011SD3W03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2011SD3W03
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5898 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MB2011SD3W03	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5898 pcs	Data sheet	MB2000 Series Bushing Mount Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	MB2000	Panel Cutout Dimensions	Circular - 6.50mm Dia
Packaging	Bulk	Other Names	MB2011SD3W03-RO MB2011SD3W03-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Rear	Current Rating	6A (AC), 3A (DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
