Home > Products > Switches > Rocker Switches > M2122RFW03

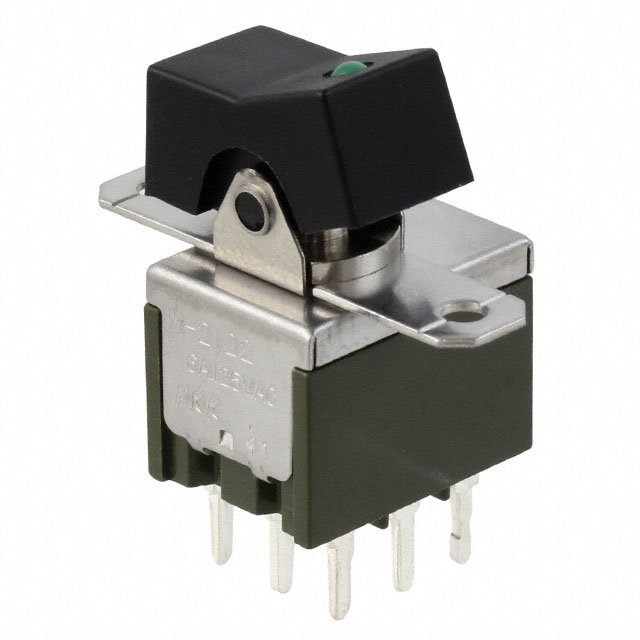

M2122RFW03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2122RFW03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2122RFW03
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6253 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.851

Product parameter
Data sheet

Product parameter

Part Number	M2122RFW03	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6253 pcs	Data sheet	M2100 Series, LED Tipped Acuators
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M2100
Panel Cutout Dimensions	Rectangular - 17.80mm x 10.10mm	Packaging	Bulk
Other Names	360-3118 M2122RFW03-ND	Operating Temperature	-10°C ~ 55°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.2 VDC	Illumination Type, Color	LED, Green
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPDT 6A (AC), 3A (DC) 125V Panel Mount, Flange	Current Rating	6A (AC), 3A (DC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Concave (Standard V) - Illuminated	Actuator Marking	No Marking
