Home > Products > Switches > Rocker Switches > M2113JCFW01

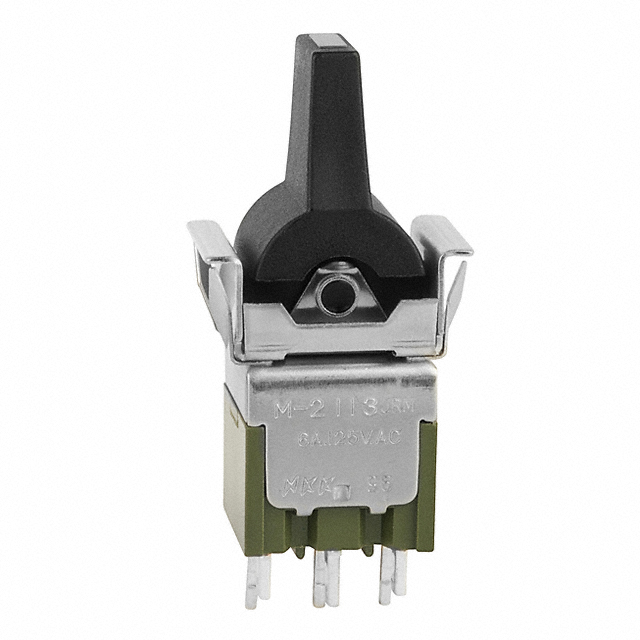

M2113JCFW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2113JCFW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2113JCFW01
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 13563 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.396	$3.057	$2.972	$2.887
	$2.802	$2.717	$2.377	$2.25

Product parameter
Data sheet

Product parameter

Part Number	M2113JCFW01	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13563 pcs	Data sheet	M2100 Series, LED Tipped Acuators
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	M2100
Panel Cutout Dimensions	Rectangular - 15.90mm x 13.10mm	Packaging	Bulk
Other Names	M2113JCFW01-RO M2113JCFW01-RO-ND	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.0, 2.2 VDC	Illumination Type, Color	LED, Red/Green
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPDT 6A (AC), 3A (DC) 125V Panel Mount, Snap-In	Current Rating	6A (AC), 3A (DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Paddle - Illuminated	Actuator Marking	No Marking
