Home > Products > Switches > Rocker Switches > M2042TZG24-JE

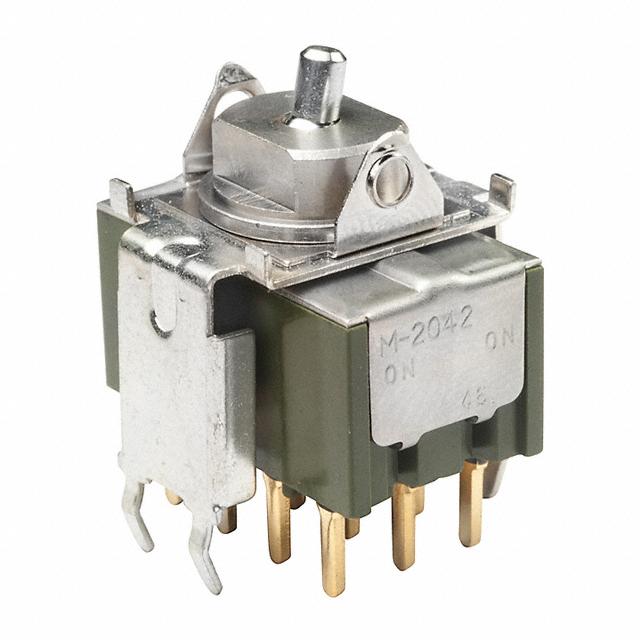

M2042TZG24-JE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2042TZG24-JE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2042TZG24-JE
Manufacturer	NKK Switches
Description	SWITCH ROCKER 4PDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8085 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$3.682

Product parameter
Data sheet

Product parameter

Part Number	M2042TZG24-JE	Manufacturer	NKK Switches
Description	SWITCH ROCKER 4PDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8085 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2042TZG24-JE-RO M2042TZG24-JE-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Rocker Switch 4PDT 0.4VA (AC/DC) 28V Through Hole
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Yellow
Circuit	4PDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
