Home > Products > Switches > Toggle Switches > M2042S2D1W01/UC

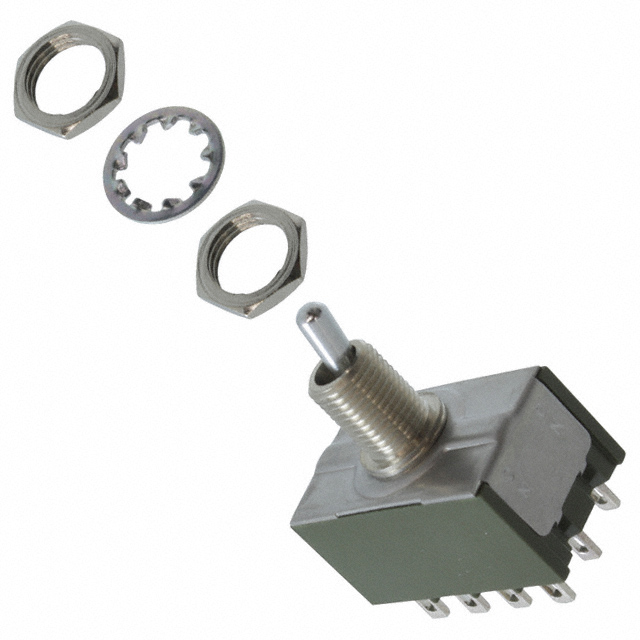

M2042S2D1W01/UC

M2042S2D1W01/UC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2042S2D1W01/UC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2042S2D1W01/UC
Manufacturer	NKK Switches
Description	SWITCH TOGGLE 4PDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10484 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.478

Product parameter
Data sheet

Product parameter

Part Number	M2042S2D1W01/UC	Manufacturer	NKK Switches
Description	SWITCH TOGGLE 4PDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10484 pcs	Data sheet	M Series Bushing Mnt Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	360-2722 M2042S2D1W01/UC-ND M2042S2D1W01/UC-RO M2042S2D1W01/UC-RO-ND M2042S2D1W01UC	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch 4PDT Panel Mount	Current Rating	6A (AC), 4A (DC)
Circuit	4PDT	Bushing Thread	1/4-40
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	5.08mm
