Home > Products > Switches > Toggle Switches > M2027LL4W01

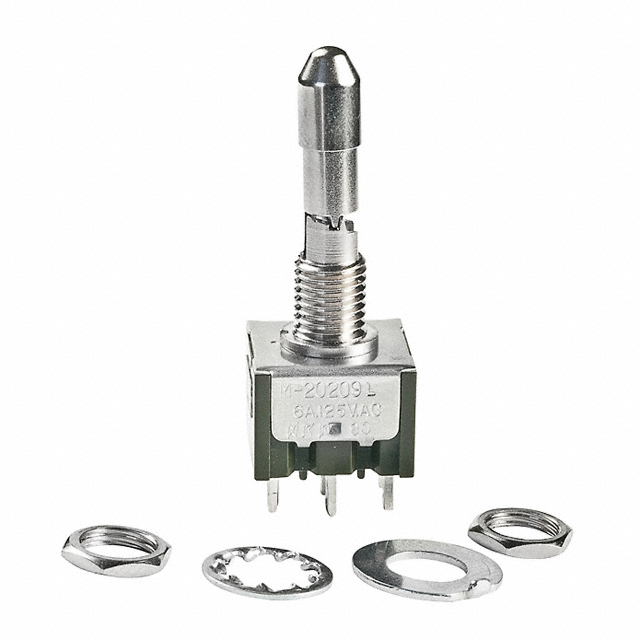

M2027LL4W01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2027LL4W01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2027LL4W01
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12005 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.955

Product parameter
Data sheet

Product parameter

Part Number	M2027LL4W01	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12005 pcs	Data sheet	M Series Bushing Mnt Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On-Mom	Series	M
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	M2027LL4W01-RO M2027LL4W01-RO-ND Q1564157	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SP3T Panel Mount	Current Rating	6A (AC), 3A (DC)
Circuit	SP3T	Bushing Thread	M6 x 0.75
Actuator Type	Locking Lever	Actuator Material	Brass, Chrome Plated
Actuator Length	16.50mm
