Home > Products > Switches > Rocker Switches > M2026TXG13-GA

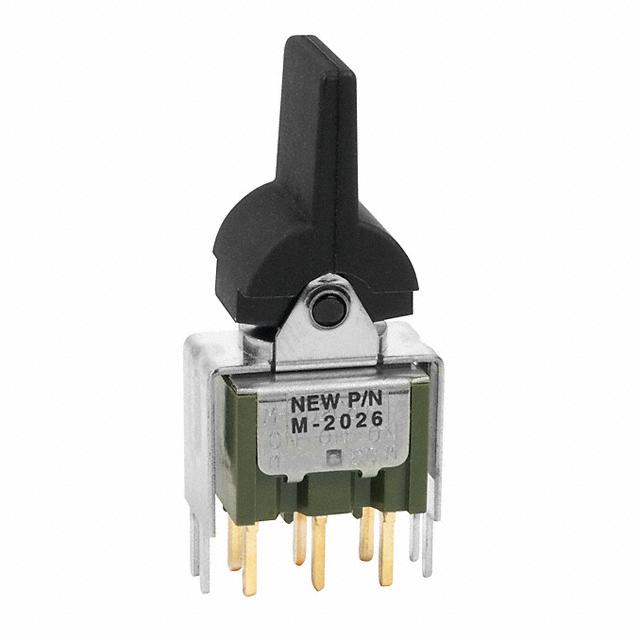

M2026TXG13-GA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2026TXG13-GA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2026TXG13-GA
Manufacturer	NKK Switches
Description	SWITCH ROCKER SP3T 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8876 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.351

Product parameter
Data sheet

Product parameter

Part Number	M2026TXG13-GA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SP3T 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8876 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	Mom-On-Mom	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	Q3483567	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Jumper needed to achieve triple throw	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SP3T 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Black	Circuit	SP3T
Actuator Type	Paddle	Actuator Marking	No Marking
