Home > Products > Switches > Rocker Switches > M2022TXW13

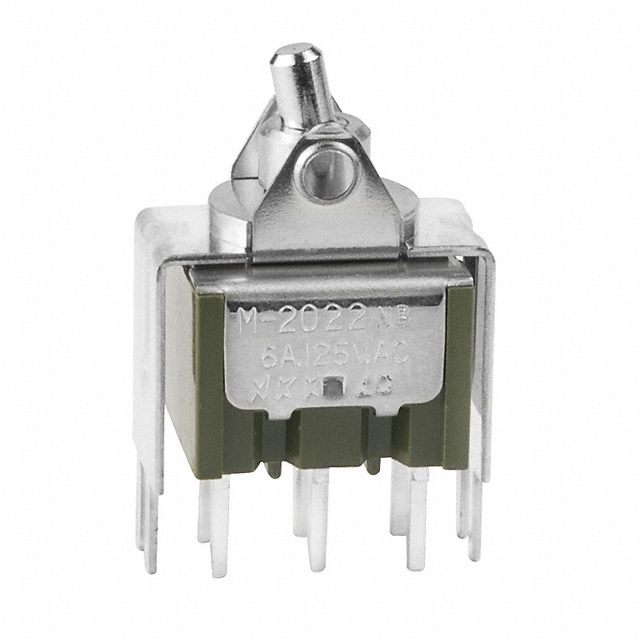

M2022TXW13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2022TXW13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2022TXW13
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 28127 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.005	$1.908	$1.812	$1.717
	$1.693	$1.645	$1.574	$1.383

Product parameter
Data sheet

Product parameter

Part Number	M2022TXW13	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28127 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2022TXW13-RO M2022TXW13-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPDT 6A (AC), 4A (DC) 125V Through Hole	Current Rating	6A (AC), 4A (DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Actuator Arm, Cap Required	Actuator Marking	Varies by Cap
