Home > Products > Switches > Rocker Switches > M2022TJW03

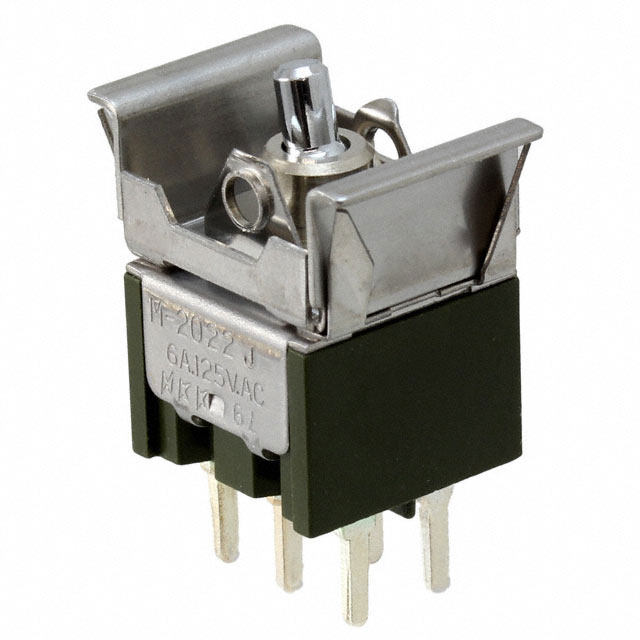

M2022TJW03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2022TJW03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2022TJW03
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27428 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.854	$1.766	$1.678	$1.589
	$1.567	$1.523	$1.457	$1.28

Product parameter
Data sheet

Product parameter

Part Number	M2022TJW03	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27428 pcs	Data sheet	M Series Mini Rocker Snap-In Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Rectangular - 15.90mm x 13.10mm	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPDT 6A (AC), 4A (DC) 125V Panel Mount, Snap-In
Current Rating	6A (AC), 4A (DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
