Home > Products > Switches > Rocker Switches > M2022TJW01-FA-2A-F

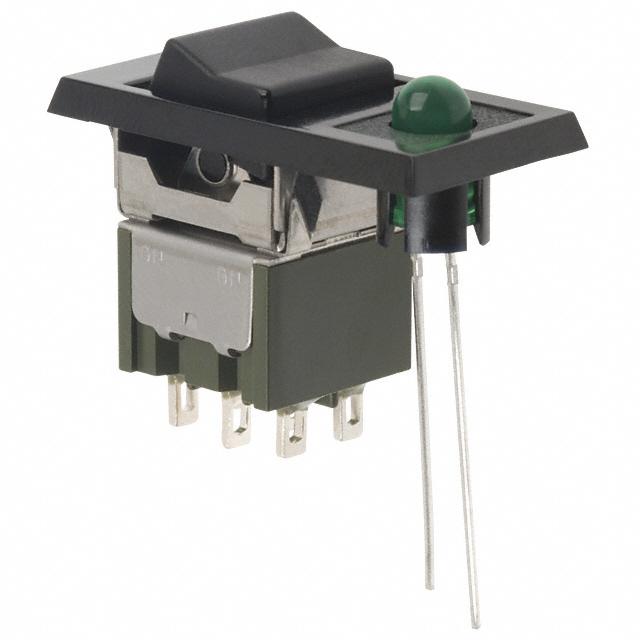

M2022TJW01-FA-2A-F

M2022TJW01-FA-2A-F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2022TJW01-FA-2A-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2022TJW01-FA-2A-F
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 19618 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.822	$2.616	$2.478	$2.444
	$2.41	$2.341	$2.134	$1.928

Product parameter
Data sheet

Product parameter

Part Number	M2022TJW01-FA-2A-F	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19618 pcs	Data sheet	M Series Mini Rocker Snap-In Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Rectangular - 15.90mm x 13.10mm	Packaging	Bulk
Other Names	360-2266 M2022TJW01-FA-2A-F-ND M2022TJW01FA2AF	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1 VDC	Illumination Type, Color	LED, Green
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPDT 6A (AC), 4A (DC) 125V Panel Mount, Snap-In	Current Rating	6A (AC), 4A (DC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Concave (Standard V) - Illuminated	Actuator Marking	No Marking
