Home > Products > Switches > Toggle Switches > M2022L1L1W01/328

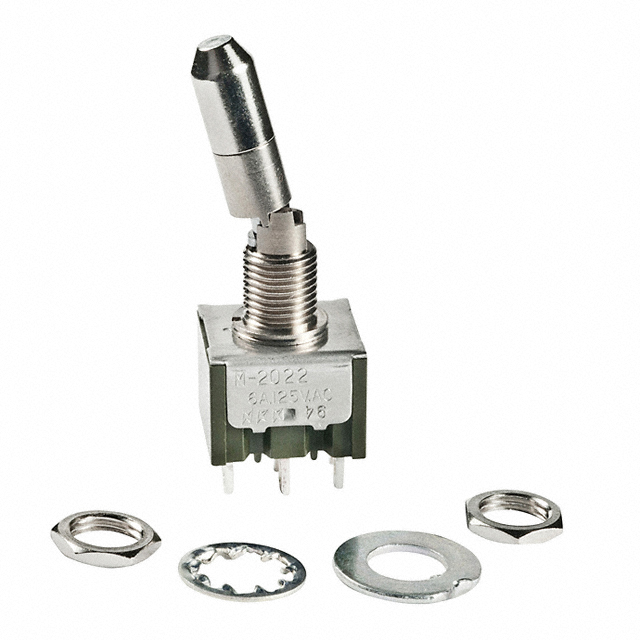

M2022L1L1W01/328

M2022L1L1W01/328

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2022L1L1W01/328 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2022L1L1W01/328
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4685 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	M2022L1L1W01/328	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4685 pcs	Data sheet	M Series Bushing Mnt Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	M2022L1L1W01/328-RO M2022L1L1W01/328-RO-ND M2022L1L1W01328	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Low Temperature Lubricant
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	6A (AC), 4A (DC)	Circuit	DPDT
Bushing Thread	1/4-40	Actuator Type	Locking Lever
Actuator Material	Brass, Chrome Plated	Actuator Length	-
