Home > Products > Switches > Toggle Switches > M2022ES1W01/U

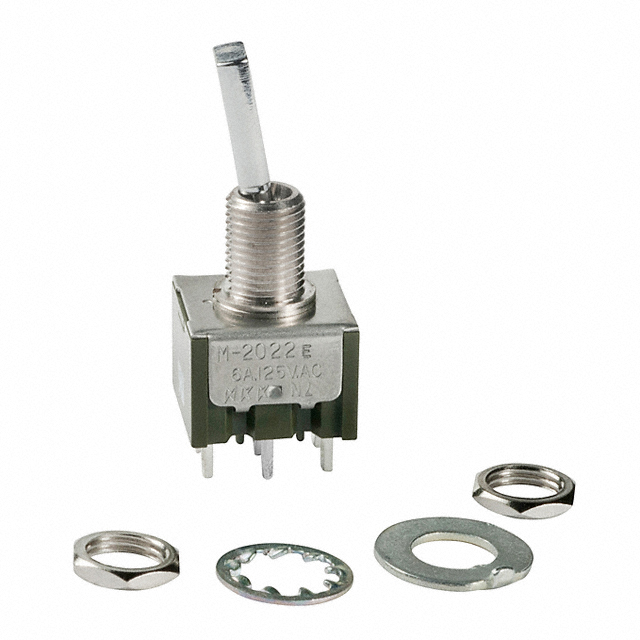

M2022ES1W01/U

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2022ES1W01/U with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2022ES1W01/U
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 28218 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.989	$1.895	$1.847	$1.80
	$1.753	$1.61	$1.421	$1.279

Product parameter
Data sheet

Product parameter

Part Number	M2022ES1W01/U	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28218 pcs	Data sheet	M Series Bushing Mnt Mini Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	M2022ES1W01/U-RO M2022ES1W01/U-RO-ND M2022ES1W01U	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	6A (AC), 4A (DC)
Circuit	DPDT	Bushing Thread	1/4-40
Actuator Type	Flatted	Actuator Material	Brass, Chrome Plated
Actuator Length	11.40mm
